针对欧美日标的充电桩检测解决方案
对于欧美日标的检测，国内基本采用在现有的国标测试设备的基础上，假如外购的国标转欧标协议转换板的方案进行设计，如下图所示：
采用这种方式优点就是技术复杂度低，开发速度快。但缺点也是致命的，具体如下：
1.无法严格开展ISO15118-4，-5的协议一致性检测，只能变通根据国标内容，进行少数的协议一致性类比测试。
2.兼容性问题，但通信出现兼容性问题，导致无法测试时，集成商无法解决，只能依赖于模块供应商。
而我司通过自主研制的欧美日标模拟器，实现高自由度的开发，可完成600项以上的协议一致性测试，这点同行均无法达到，完全对标世界知名设备供应商vector的相关设备。
通过以上的技术研发，并结合我司在国标方面已有的便携式设备，实验室设备平台技术，实现了欧美日标相关的综合性检测设备，包含欧美日标现场特性测试仪、欧美日标实验室检测平台，欧美日标老化测试平台等。
|
型号 |
产品名称 |
产品图片 |
主要功能 |
等级 |
相关标准 |
选型备注 |
|

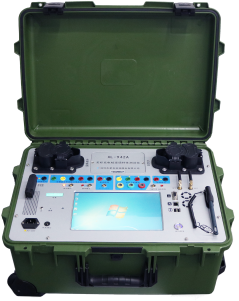

XL-942ES |
欧标直流充电桩现场特性测试仪 |
|
针对欧标直流充电桩计量检定、互操作性检测、协议一致性检测（ES独有）、性能功能检测（ES功能更完善） |
0.05级 |
IEC61851-1,IEC6185123,IEC6185124, |
功能全面，真正意义上的欧标检测设备 |
|
XL-942AS |
美标直流充电桩现场特性测试仪 |
|
针对美标直流充电桩计量检定、互操作性检测、协议一致性检测（ES独有）、性能功能检测（ES功能更完善） |
0.05级 |
SAEJ1772,IEC61851-1,IEC61851-23, |
功能全面，真正意义上的美标检测设备 |
欧美日标相关检测项目如下：
表1.直流欧美标检测项目
|
项目集 |
序号 |
项目 |
引用 |
|
互操作性 |
1 |
充电连接就绪 |
IEC61851-1 |
| 2 |
自检阶段 |
IEC61851-23 |
|
| 3 |
充电准备就绪测试（含预充） |
IEC61851-23 |
|
| 4 |
充电阶段 |
IEC61851-23 |
|
| 5 |
正常充电结束 |
IEC61851-23 |
|
| 6 |
充电连接控制时序 |
IEC61851-23 |
|
| 7 |
保护导体连续性检查（PE断线） |
IEC61851-23 |
|
| 8 |
控制导引中断试验 |
IEC61851-23 |
|
| 9 |
充电前绝缘试验 |
IEC61851-23 |
|
| 10 |
电池过电压保护试验 |
IEC61851-23 |
|
| 11 |
紧急停机试验 |
IEC61851-23 |
|
| 12 |
输出电流误差试验 |
IEC61851-23 |
|
| 13 |
输出电压误差试验 |
IEC61851-23 |
|
| 14 |
充电电流控制延时试验 |
IEC61851-23 |
|
| 15 |
充电电流下降速率试验 |
IEC61851-23 |
|
| 16 |
负载突降试验 |
IEC61851-23 |
|
| 17 |
充电桩电压测量误差 |
IEC61851-23 |
|
| 18 |
充电桩电流测量误差 |
IEC61851-23 |
|
|
综合性检测项目 |
1 |
连接正确性测试 |
IEC61851-23 |
| 2 |
供电功能 |
IEC61851-23 |
|
| 3 |
断电功能 |
IEC61851-23 |
|
| 4 |
最大允许电流 |
IEC61851-23 |
|
| 5 |
直流充电测试 |
IEC61851-23 |
|
| 6 |
电流调节误差 |
IEC61851-23 |
|
| 7 |
电流纹波 |
IEC61851-23 |
|
| 8 |
电压调节误差测量 |
IEC61851-23 |
|
| 9 |
电流调整时间 |
IEC61851-23 |
|
| 10 |
电流下降速率 |
IEC61851-23 |
|
| 11 |
电压纹波测量 |
IEC61851-23 |
|
| 12 |
电压测量误差 |
IEC61851-23 |
|
| 13 |
电流测量误差 |
IEC61851-23 |
|
| 14 |
兼容性检测 |
IEC61851-23 |
|
| 15 |
预充前绝缘故障试验 |
IEC61851-23 |
|
| 16 |
输出端过压紧急停机试验 |
IEC61851-23 |
|
| 17 |
输出端过压错误停机试验 |
IEC61851-23 |
|
| 18 |
报文方式过压试验 |
IEC61851-23 |
|
| 19 |
短时过压试验 |
IEC61851-23 |
|
| 20 |
充电中绝缘故障试验 |
IEC61851-23 |
|
| 21 |
过流保护试验 |
IEC61851-23 |
|
| 22 |
主动中止试验 |
IEC61851-23 |
|
| 23 |
被动中止试验 |
IEC61851-23 |
|
| 24 |
错误中止试验 |
IEC61851-23 |
|
| 25 |
紧急中止试验 |
IEC61851-23 |
|
| 26 |
正常启动 |
IEC61851-23 |
|
| 27 |
充电桩唤醒功能试验 |
IEC61851-23 |
|
| 28 |
额定输出试验 |
IEC61851-23 |
|
| 29 |
负载突降试验 |
IEC61851-23 |
|
| 30 |
输入电流过冲试验 |
IEC61851-23 |
|
| 31 |
CP接地保护试验 |
IEC61851-23 |
|
| 32 |
粘连检测过程的电压检测试验 |
IEC61851-23 |
|
| 33 |
绝缘异常试验 |
IEC61851-23 |
|
| 34 |
连接正确性测试 |
IEC61851-1 |
|
| 35 |
接地导体的连续性 |
IEC61851-1 |
|
| 36 |
供电功能 |
IEC61851-1 |
|
| 37 |
断电功能 |
IEC61851-1 |
|
| 38 |
最大允许电流 |
IEC61851-1 |
|
|
其他检测项目 |
39 |
效率试验 |
NB/T33008.1 |
| 40 |
功率因数试验 |
NB/T33008.1 |
表2.ISO15118协议一致性测试
|
序号 |
项目名称 |
|
1 |
TC_SECC_CMN_VTB_V2GTPSessionSetup_001 |
|
2 |
TC_SECC_CMN_VTB_V2GTPSessionSetup_002 |
|
3 |
TC_SECC_CMN_VTB_V2GTPSessionSetup_003 |
|
4 |
TC_SECC_CMN_VTB_V2GTPSessionSetup_004 |
|
5 |
TC_SECC_CMN_VTB_V2GTPSessionSetup_005 |
|
6 |
TC_SECC_CMN_VTB_V2GTPSDP_001 |
|
7 |
TC_SECC_CMN_VTB_V2GTPSDP_002 |
|
8 |
TC_SECC_CMN_VTB_V2GTPSDP_003 |
|
9 |
TC_SECC_CMN_VTB_V2GTPSDP_004 |
|
10 |
TC_SECC_CMN_VTB_V2GTPSDP_005 |
|
11 |
TC_SECC_CMN_VTB_SDP_001 |
|
12 |
TC_SECC_CMN_VTB_SDP_002 |
|
13 |
TC_SECC_CMN_VTB_SDP_003 |
|
14 |
TC_SECC_CMN_VTB_SDP_004 |
|
15 |
TC_SECC_CMN_VTB_SDP_005 |
|
16 |
TC_SECC_CMN_VTB_SDP_006 |
|
17 |
TC_SECC_CMN_VTB_SDP_007 |
|
18 |
TC_SECC_CMN_VTB_SupportedAppProtocol_001 |
|
19 |
TC_SECC_CMN_VTB_SupportedAppProtocol_002 |
|
20 |
TC_SECC_CMN_VTB_SupportedAppProtocol_003 |
|
21 |
TC_SECC_CMN_VTB_SupportedAppProtocol_004 |
|
22 |
TC_SECC_CMN_VTB_SupportedAppProtocol_005 |
|
23 |
TC_SECC_CMN_VTB_SupportedAppProtocol_006 |
|
24 |
TC_SECC_CMN_VTB_SessionSetup_001 |
|
25 |
TC_SECC_CMN_VTB_SessionSetup_002 |
|
26 |
TC_SECC_CMN_VTB_SessionSetup_003 |
|
27 |
TC_SECC_CMN_VTB_SessionSetup_004 |
|
28 |
TC_SECC_DC_VTB_SessionSetup_001 |
|
29 |
TC_SECC_DC_VTB_SessionSetup_002 |
|
30 |
TC_SECC_DC_VTB_SessionSetup_003 |
|
31 |
TC_SECC_DC_VTB_SessionSetup_004 |
|
32 |
TC_SECC_DC_VTB_SessionSetup_005 |
|
33 |
TC_SECC_DC_VTB_SessionSetup_006 |
|
34 |
TC_SECC_CMN_VTB_ServiceDiscovery_001 |
|
35 |
TC_SECC_CMN_VTB_ServiceDiscovery_002 |
|
36 |
TC_SECC_CMN_VTB_ServiceDiscovery_003 |
|
37 |
TC_SECC_CMN_VTB_ServiceDiscovery_004 |
|
38 |
TC_SECC_DC_VTB_ServiceDiscovery_001 |
|
39 |
TC_SECC_DC_VTB_ServiceDiscovery_002 |
|
40 |
TC_SECC_CMN_VTB_PaymentServiceSelection_001 |
|
41 |
TC_SECC_CMN_VTB_PaymentServiceSelection_004 |
|
42 |
TC_SECC_CMN_VTB_PaymentServiceSelection_005 |
|
43 |
TC_SECC_CMN_VTB_PaymentServiceSelection_006 |
|
44 |
TC_SECC_CMN_VTB_PaymentServiceSelection_007 |
|
45 |
TC_SECC_CMN_VTB_PaymentServiceSelection_008 |
|
46 |
TC_SECC_CMN_VTB_PaymentServiceSelection_009 |
|
47 |
TC_SECC_CMN_VTB_PaymentServiceSelection_010 |
|
48 |
TC_SECC_CMN_VTB_PaymentDetails_001 |
|
49 |
TC_SECC_CMN_VTB_PaymentDetails_002 |
|
50 |
TC_SECC_CMN_VTB_PaymentDetails_003 |
|
51 |
TC_SECC_CMN_VTB_PaymentDetails_004 |
|
52 |
TC_SECC_CMN_VTB_PaymentDetails_005 |
|
53 |
TC_SECC_CMN_VTB_PaymentDetails_006 |
|
54 |
TC_SECC_CMN_VTB_PaymentDetails_007 |
|
55 |
TC_SECC_CMN_VTB_PaymentDetails_008 |
|
56 |
TC_SECC_CMN_VTB_PaymentDetails_009 |
|
57 |
TC_SECC_CMN_VTB_PaymentDetails_010 |
|
58 |
TC_SECC_CMN_VTB_Authorization_001 |
|
59 |
TC_SECC_CMN_VTB_Authorization_002 |
|
60 |
TC_SECC_CMN_VTB_Authorization_003 |
|
61 |
TC_SECC_CMN_VTB_Authorization_004 |
|
62 |
TC_SECC_CMN_VTB_Authorization_005 |
|
63 |
TC_SECC_CMN_VTB_Authorization_006 |
|
64 |
TC_SECC_CMN_VTB_Authorization_007 |
|
65 |
TC_SECC_CMN_VTB_Authorization_008 |
|
66 |
TC_SECC_CMN_VTB_Authorization_009 |
|
67 |
TC_SECC_CMN_VTB_Authorization_010 |
|
68 |
TC_SECC_CMN_VTB_Authorization_011 |
|
69 |
TC_SECC_CMN_VTB_Authorization_012 |
|
70 |
TC_SECC_CMN_VTB_Authorization_013 |
|
71 |
TC_SECC_CMN_VTB_Authorization_014 |
|
72 |
TC_SECC_CMN_VTB_Authorization_015 |
|
73 |
TC_SECC_CMN_VTB_Authorization_016 |
|
74 |
TC_SECC_CMN_VTB_Authorization_017 |
|
75 |
TC_SECC_CMN_VTB_ChargeParameterDiscovery_001 |
|
76 |
TC_SECC_CMN_VTB_ChargeParameterDiscovery_002 |
|
77 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_001 |
|
78 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_002 |
|
79 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_003 |
|
80 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_004 |
|
81 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_005 |
|
82 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_006 |
|
83 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_007 |
|
84 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_008 |
|
85 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_009 |
|
86 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_010 |
|
87 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_011 |
|
88 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_012 |
|
89 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_013 |
|
90 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_014 |
|
91 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_015 |
|
92 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_016 |
|
93 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_017 |
|
94 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_018 |
|
95 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_019 |
|
96 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_020 |
|
97 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_021 |
|
98 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_022 |
|
99 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_023 |
|
100 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_024 |
|
101 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_025 |
|
102 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_026 |
|
103 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_027 |
|
104 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_028 |
|
105 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_029 |
|
106 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_030 |
|
107 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_031 |
|
108 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_032 |
|
109 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_033 |
|
110 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_034 |
|
111 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_035 |
|
112 |
TC_SECC_DC_VTB_ChargeParameterDiscovery_036 |
|
113 |
TC_SECC_DC_VTB_PowerDelivery_001 |
|
114 |
TC_SECC_DC_VTB_PowerDelivery_002 |
|
115 |
TC_SECC_DC_VTB_PowerDelivery_003 |
|
116 |
TC_SECC_DC_VTB_PowerDelivery_004 |
|
117 |
TC_SECC_DC_VTB_PowerDelivery_005 |
|
118 |
TC_SECC_DC_VTB_PowerDelivery_006 |
|
119 |
TC_SECC_DC_VTB_PowerDelivery_007 |
|
120 |
TC_SECC_DC_VTB_PowerDelivery_008 |
|
121 |
TC_SECC_DC_VTB_PowerDelivery_009 |
|
122 |
TC_SECC_DC_VTB_PowerDelivery_010 |
|
123 |
TC_SECC_DC_VTB_PowerDelivery_011 |
|
124 |
TC_SECC_DC_VTB_PowerDelivery_012 |
|
125 |
TC_SECC_DC_VTB_PowerDelivery_013 |
|
126 |
TC_SECC_DC_VTB_PowerDelivery_014 |
|
127 |
TC_SECC_DC_VTB_PowerDelivery_015 |
|
128 |
TC_SECC_DC_VTB_PowerDelivery_016 |
|
129 |
TC_SECC_DC_VTB_PowerDelivery_017 |
|
130 |
TC_SECC_DC_VTB_PowerDelivery_018 |
|
131 |
TC_SECC_DC_VTB_PowerDelivery_019 |
|
132 |
TC_SECC_DC_VTB_PowerDelivery_020 |
|
133 |
TC_SECC_DC_VTB_PowerDelivery_021 |
|
134 |
TC_SECC_DC_VTB_SessionStop_001 |
|
135 |
TC_SECC_DC_VTB_SessionStop_002 |
|
136 |
TC_SECC_DC_VTB_SessionStop_003 |
|
137 |
TC_SECC_DC_VTB_SessionStop_004 |
|
138 |
TC_SECC_DC_VTB_SessionStop_005 |
|
139 |
TC_SECC_DC_VTB_SessionStop_006 |
|
140 |
TC_SECC_DC_VTB_SessionStop_007 |
|
141 |
TC_SECC_DC_VTB_SessionStop_008 |
|
142 |
TC_SECC_DC_VTB_SessionStop_009 |
|
143 |
TC_SECC_DC_VTB_CableCheck_001 |
|
144 |
TC_SECC_DC_VTB_CableCheck_002 |
|
145 |
TC_SECC_DC_VTB_CableCheck_003 |
|
146 |
TC_SECC_DC_VTB_CableCheck_004 |
|
147 |
TC_SECC_DC_VTB_CableCheck_005 |
|
148 |
TC_SECC_DC_VTB_CableCheck_006 |
|
149 |
TC_SECC_DC_VTB_CableCheck_007 |
|
150 |
TC_SECC_DC_VTB_CableCheck_008 |
|
151 |
TC_SECC_DC_VTB_PreCharge_001 |
|
152 |
TC_SECC_DC_VTB_PreCharge_002 |
|
153 |
TC_SECC_DC_VTB_PreCharge_003 |
|
154 |
TC_SECC_DC_VTB_PreCharge_004 |
|
155 |
TC_SECC_DC_VTB_CurrentDemand_001 |
|
156 |
TC_SECC_DC_VTB_CurrentDemand_002 |
|
157 |
TC_SECC_DC_VTB_CurrentDemand_003 |
|
158 |
TC_SECC_DC_VTB_CurrentDemand_004 |
|
159 |
TC_SECC_DC_VTB_CurrentDemand_005 |
|
160 |
TC_SECC_DC_VTB_CurrentDemand_006 |
|
161 |
TC_SECC_DC_VTB_CurrentDemand_007 |
|
162 |
TC_SECC_DC_VTB_CurrentDemand_008 |
|
163 |
TC_SECC_DC_VTB_CurrentDemand_009 |
|
164 |
TC_SECC_DC_VTB_WeldingDetection_001 |
|
165 |
TC_SECC_DC_VTB_WeldingDetection_002 |
|
166 |
TC_SECC_DC_VTB_WeldingDetection_003 |
|
167 |
TC_SECC_DC_VTB_WeldingDetection_004 |
|
168 |
TC_SECC_DC_VTB_WeldingDetection_005 |
|
169 |
TC_SECC_CMN_VTB_CmSlacParm_001 |
|
170 |
TC_SECC_CMN_VTB_CmSlacParm_002 |
|
171 |
TC_SECC_CMN_VTB_CmSlacParm_003 |
|
172 |
TC_SECC_CMN_VTB_CmSlacParm_004 |
|
173 |
TC_SECC_CMN_VTB_CmSlacParm_005 |
|
174 |
TC_SECC_CMN_VTB_CmSlacParm_006 |
|
175 |
TC_SECC_CMN_VTB_CmSlacParm_007 |
|
176 |
TC_SECC_CMN_VTB_CmSlacParm_008 |
|
177 |
TC_SECC_CMN_VTB_CmSlacParm_009 |
|
178 |
TC_SECC_CMN_VTB_AttenuationCharacterization_001 |
|
179 |
TC_SECC_CMN_VTB_AttenuationCharacterization_002 |
|
180 |
TC_SECC_CMN_VTB_AttenuationCharacterization_003 |
|
181 |
TC_SECC_CMN_VTB_AttenuationCharacterization_004 |
|
182 |
TC_SECC_CMN_VTB_AttenuationCharacterization_005 |
|
183 |
TC_SECC_CMN_VTB_AttenuationCharacterization_006 |
|
184 |
TC_SECC_CMN_VTB_AttenuationCharacterization_007 |
|
185 |
TC_SECC_CMN_VTB_AttenuationCharacterization_008 |
|
186 |
TC_SECC_CMN_VTB_AttenuationCharacterization_009 |
|
187 |
TC_SECC_CMN_VTB_AttenuationCharacterization_010 |
|
188 |
TC_SECC_CMN_VTB_AttenuationCharacterization_011 |
|
189 |
TC_SECC_CMN_VTB_AttenuationCharacterization_012 |
|
190 |
TC_SECC_CMN_VTB_AttenuationCharacterization_013 |
|
191 |
TC_SECC_CMN_VTB_AttenuationCharacterization_014 |
|
192 |
TC_SECC_CMN_VTB_AttenuationCharacterization_015 |
|
193 |
TC_SECC_CMN_VTB_AttenuationCharacterization_016 |
|
194 |
TC_SECC_CMN_VTB_AttenuationCharacterization_017 |
|
195 |
TC_SECC_CMN_VTB_AttenuationCharacterization_018 |
|
196 |
TC_SECC_CMN_VTB_AttenuationCharacterization_019 |
|
197 |
TC_SECC_CMN_VTB_CmValidate_010 |
|
198 |
TC_SECC_CMN_VTB_CmSlacMatch_001 |
|
199 |
TC_SECC_CMN_VTB_CmSlacMatch_003 |
|
200 |
TC_SECC_CMN_VTB_CmSlacMatch_005 |
|
201 |
TC_SECC_CMN_VTB_CmSlacMatch_007 |
|
202 |
TC_SECC_CMN_VTB_CmSlacMatch_009 |
|
203 |
TC_SECC_CMN_VTB_CmSlacMatch_011 |
|
204 |
TC_SECC_CMN_VTB_CmSlacMatch_013 |
|
205 |
TC_SECC_CMN_VTB_CmSlacMatch_015 |
|
206 |
TC_SECC_CMN_VTB_CmSlacMatch_017 |
|
207 |
TC_SECC_CMN_VTB_CmSlacMatch_019 |
|
208 |
TC_SECC_CMN_VTB_CmSlacMatch_021 |
|
209 |
TC_SECC_CMN_VTB_CmSlacMatch_023 |
|
210 |
TC_SECC_CMN_VTB_PLCLinkStatus_001 |
|
211 |
TC_SECC_CMN_VTB_PLCLinkStatus_002 |
|
212 |
TC_SECC_CMN_VTB_PLCLinkStatus_003 |
|
213 |
TC_SECC_CMN_VTB_PLCLinkStatus_004 |
|
214 |
TC_SECC_CMN_VTB_PLCLinkStatus_005 |
|
215 |
TC_SECC_DC_VTB_PLCLinkStatus_001 |
|
216 |
TC_SECC_DC_VTB_PLCLinkStatus_002 |
|
217 |
TC_SECC_DC_VTB_PLCLinkStatus_003 |
|
218 |
TC_SECC_DC_VTB_PLCLinkStatus_004 |
|
219 |
TC_SECC_DC_VTB_PLCLinkStatus_005 |
|
220 |
TC_SECC_DC_VTB_PLCLinkStatus_006 |
|
221 |
TC_SECC_DC_VTB_PLCLinkStatus_007 |
表3.DIN 70121欧标协议一致性
|
序号 |
项目名称 |
备注 |
|
1 |
TC_SECC_VTB_CmSlacParm_001 |
|
|
2 |
TC_SECC_VTB_CmSlacParm_002 |
|
|
3 |
TC_SECC_VTB_CmSlacParm_003 |
|
|
4 |
TC_SECC_VTB_CmSlacParm_004 |
|
|
5 |
TC_SECC_VTB_AttenuationCharacterization_001 |
|
|
6 |
TC_SECC_VTB_AttenuationCharacterization_002 |
|
|
7 |
TC_SECC_VTB_AttenuationCharacterization_003 |
|
|
8 |
TC_SECC_VTB_AttenuationCharacterization_004 |
|
|
9 |
TC_SECC_VTB_AttenuationCharacterization_005 |
|
|
10 |
TC_SECC_VTB_AttenuationCharacterization_006 |
|
|
11 |
TC_SECC_VTB_AttenuationCharacterization_007 |
|
|
12 |
TC_SECC_VTB_AttenuationCharacterization_008 |
|
|
13 |
TC_SECC_VTB_AttenuationCharacterization_009 |
|
|
14 |
TC_SECC_VTB_AttenuationCharacterization_010 |
|
|
15 |
TC_SECC_VTB_AttenuationCharacterization_011 |
|
|
16 |
TC_SECC_VTB_AttenuationCharacterization_012 |
|
|
17 |
TC_SECC_VTB_AttenuationCharacterization_013 |
|
|
18 |
TC_SECC_VTB_AttenuationCharacterization_014 |
|
|
19 |
TC_SECC_VTB_AttenuationCharacterization_015 |
|
|
20 |
TC_SECC_VTB_AttenuationCharacterization_016 |
|
|
21 |
TC_SECC_VTB_AttenuationCharacterization_017 |
|
|
22 |
TC_SECC_VTB_AttenuationCharacterization_018 |
|
|
23 |
TC_SECC_VTB_AttenuationCharacterization_019 |
|
|
24 |
TC_SECC_VTB_AttenuationCharacterization_020 |
|
|
25 |
TC_SECC_VTB_CmSlacMatch_001 |
|
|
26 |
TC_SECC_VTB_CmSlacMatch_003 |
|
|
27 |
TC_SECC_VTB_CmSlacMatch_005 |
|
|
28 |
TC_SECC_VTB_CmSlacMatch_007 |
|
|
29 |
TC_SECC_VTB_CmSlacMatch_009 |
|
|
30 |
TC_SECC_VTB_CmSlacMatch_011 |
|
|
31 |
TC_SECC_VTB_CmSlacMatch_013 |
|
|
32 |
TC_SECC_VTB_CmSlacMatch_015 |
|
|
33 |
TC_SECC_VTB_CmSlacMatch_017 |
|
|
34 |
TC_SECC_VTB_CmSlacMatch_019 |
|
|
35 |
TC_SECC_VTB_CmSlacMatch_021 |
|
|
36 |
TC_SECC_VTB_PLCLinkStatus_001 |
|
|
37 |
TC_SECC_VTB_PLCLinkStatus_002 |
|
|
38 |
TC_SECC_VTB_PLCLinkStatus_003 |
|
|
39 |
TC_SECC_VTB_PLCLinkStatus_004 |
|
|
40 |
TC_SECC_VTB_PLCLinkStatus_005 |
|
|
41 |
TC_SECC_VTB_PLCLinkStatus_006 |
|
|
42 |
TC_SECC_VTB_V2GTPSessionSetup_001 |
|
|
43 |
TC_SECC_VTB_V2GTPSessionSetup_002 |
|
|
44 |
TC_SECC_VTB_V2GTPSessionSetup_003 |
|
|
45 |
TC_SECC_VTB_V2GTPSessionSetup_004 |
|
|
46 |
TC_SECC_VTB_V2GTPSDP_001 |
|
|
47 |
TC_SECC_VTB_SDP_001 |
|
|
48 |
TC_SECC_VTB_SDP_002 |
|
|
49 |
TC_SECC_VTB_SupportedAppProtocol_001 |
|
|
50 |
TC_SECC_VTB_SupportedAppProtocol_002 |
|
|
51 |
TC_SECC_VTB_SupportedAppProtocol_003 |
|
|
52 |
TC_SECC_VTB_SupportedAppProtocol_004 |
|
|
53 |
TC_SECC_VTB_SupportedAppProtocol_005 |
|
|
54 |
TC_SECC_VTB_SessionSetup_001 |
|
|
55 |
TC_SECC_VTB_SessionSetup_002 |
|
|
56 |
TC_SECC_VTB_SessionSetup_003 |
|
|
57 |
TC_SECC_VTB_SessionSetup_004 |
|
|
58 |
TC_SECC_VTB_ServiceDiscovery_001 |
|
|
59 |
TC_SECC_VTB_ServiceDiscovery_002 |
|
|
60 |
TC_SECC_VTB_ServiceDiscovery_003 |
|
|
61 |
TC_SECC_VTB_ServiceDiscovery_004 |
|
|
62 |
TC_SECC_VTB_ServiceDiscovery_005 |
|
|
63 |
TC_SECC_VTB_ServiceDiscovery_006 |
|
|
64 |
TC_SECC_VTB_ServiceDiscovery_007 |
|
|
65 |
TC_SECC_VTB_ServiceDiscovery_008 |
|
|
66 |
TC_SECC_VTB_ServicePaymentSelection_001 |
|
|
67 |
TC_SECC_VTB_ServicePaymentSelection_002 |
|
|
68 |
TC_SECC_VTB_ServicePaymentSelection_003 |
|
|
69 |
TC_SECC_VTB_ServicePaymentSelection_004 |
|
|
70 |
TC_SECC_VTB_ServicePaymentSelection_005 |
|
|
71 |
TC_SECC_VTB_ServicePaymentSelection_006 |
|
|
72 |
TC_SECC_VTB_ServicePaymentSelection_007 |
|
|
73 |
TC_SECC_VTB_ServicePaymentSelection_008 |
|
|
74 |
TC_SECC_VTB_ContractAuthentication_001 |
|
|
75 |
TC_SECC_VTB_ContractAuthentication_002 |
|
|
76 |
TC_SECC_VTB_ContractAuthentication_003 |
|
|
77 |
TC_SECC_VTB_ContractAuthentication_004 |
|
|
78 |
TC_SECC_VTB_ContractAuthentication_005 |
|
|
79 |
TC_SECC_VTB_ContractAuthentication_006 |
|
|
80 |
TC_SECC_VTB_ContractAuthentication_007 |
|
|
81 |
TC_SECC_VTB_ChargeParameterDiscovery_001 |
|
|
82 |
TC_SECC_VTB_ChargeParameterDiscovery_002 |
|
|
83 |
TC_SECC_VTB_ChargeParameterDiscovery_003 |
|
|
84 |
TC_SECC_VTB_ChargeParameterDiscovery_004 |
|
|
85 |
TC_SECC_VTB_ChargeParameterDiscovery_005 |
|
|
86 |
TC_SECC_VTB_ChargeParameterDiscovery_006 |
|
|
87 |
TC_SECC_VTB_ChargeParameterDiscovery_007 |
|
|
88 |
TC_SECC_VTB_ChargeParameterDiscovery_008 |
|
|
89 |
TC_SECC_VTB_ChargeParameterDiscovery_009 |
|
|
90 |
TC_SECC_VTB_CableCheck_001 |
|
|
91 |
TC_SECC_VTB_CableCheck_002 |
|
|
92 |
TC_SECC_VTB_CableCheck_003 |
|
|
93 |
TC_SECC_VTB_CableCheck_004 |
|
|
94 |
TC_SECC_VTB_CableCheck_005 |
|
|
95 |
TC_SECC_VTB_CableCheck_006 |
|
|
96 |
TC_SECC_VTB_CableCheck_007 |
|
|
97 |
TC_SECC_VTB_CableCheck_008 |
|
|
98 |
TC_SECC_VTB_CableCheck_009 |
|
|
99 |
TC_SECC_VTB_CableCheck_010 |
|
|
100 |
TC_SECC_VTB_CableCheck_011 |
|
|
101 |
TC_SECC_VTB_CableCheck_012 |
|
|
102 |
TC_SECC_VTB_CableCheck_013 |
|
|
103 |
TC_SECC_VTB_CableCheck_014 |
|
|
104 |
TC_SECC_VTB_CableCheck_015 |
|
|
105 |
TC_SECC_VTB_CableCheck_016 |
|
|
106 |
TC_SECC_VTB_CableCheck_017 |
|
|
107 |
TC_SECC_VTB_CableCheck_018 |
|
|
108 |
TC_SECC_VTB_CableCheck_019 |
|
|
109 |
TC_SECC_VTB_CableCheck_020 |
|
|
110 |
TC_SECC_VTB_CableCheck_021 |
|
|
111 |
TC_SECC_VTB_CableCheck_022 |
|
|
112 |
TC_SECC_VTB_CableCheck_023 |
|
|
113 |
TC_SECC_VTB_PreCharge_001 |
|
|
114 |
TC_SECC_VTB_PreCharge_002 |
|
|
115 |
TC_SECC_VTB_PreCharge_003 |
|
|
116 |
TC_SECC_VTB_PreCharge_004 |
|
|
117 |
TC_SECC_VTB_PreCharge_005 |
|
|
118 |
TC_SECC_VTB_PreCharge_006 |
|
|
119 |
TC_SECC_VTB_PreCharge_007 |
|
|
120 |
TC_SECC_VTB_PreCharge_008 |
|
|
121 |
TC_SECC_VTB_PowerDelivery_001 |
|
|
122 |
TC_SECC_VTB_PowerDelivery_002 |
|
|
123 |
TC_SECC_VTB_PowerDelivery_003 |
|
|
124 |
TC_SECC_VTB_PowerDelivery_004 |
|
|
125 |
TC_SECC_VTB_PowerDelivery_005 |
|
|
126 |
TC_SECC_VTB_PowerDelivery_006 |
|
|
127 |
TC_SECC_VTB_PowerDelivery_007 |
|
|
128 |
TC_SECC_VTB_PowerDelivery_008 |
|
|
129 |
TC_SECC_VTB_PowerDelivery_009 |
|
|
130 |
TC_SECC_VTB_PowerDelivery_010 |
|
|
131 |
TC_SECC_VTB_PowerDelivery_011 |
|
|
132 |
TC_SECC_VTB_PowerDelivery_012 |
|
|
133 |
TC_SECC_VTB_PowerDelivery_013 |
|
|
134 |
TC_SECC_VTB_PowerDelivery_014 |
|
|
135 |
TC_SECC_VTB_CurrentDemand_001 |
|
|
136 |
TC_SECC_VTB_CurrentDemand_002 |
|
|
137 |
TC_SECC_VTB_CurrentDemand_003 |
|
|
138 |
TC_SECC_VTB_CurrentDemand_004 |
|
|
139 |
TC_SECC_VTB_CurrentDemand_005 |
|
|
140 |
TC_SECC_VTB_CurrentDemand_006 |
|
|
141 |
TC_SECC_VTB_WeldingDetection_001 |
|
|
142 |
TC_SECC_VTB_WeldingDetection_002 |
|
|
143 |
TC_SECC_VTB_WeldingDetection_003 |
|
|
144 |
TC_SECC_VTB_WeldingDetection_004 |
|
|
145 |
TC_SECC_VTB_WeldingDetection_005 |
|
|
146 |
TC_SECC_VTB_WeldingDetection_006 |
|
|
147 |
TC_SECC_VTB_WeldingDetection_007 |
|
|
148 |
TC_SECC_VTB_SessionStop_001 |
|
|
149 |
TC_SECC_VTB_SessionStop_002 |
|
|
150 |
TC_SECC_VTB_SessionStop_003 |
|
|
151 |
TC_SECC_VTB_SessionStop_004 |
|
|
152 |
TC_SECC_VTB_SessionStop_005 |
|
|
153 |
TC_SECC_VTB_SessionStop_006 |
|
|
154 |
TC_SECC_VTB_SessionStop_007 |
|
|
155 |
TC_SECC_VTB_SessionStop_008 |
|
|
156 |
TC_SECC_VTB_SessionStop_009 |
|
|
157 |
TC_SECC_VTB_SessionStop_010 |
|
|
158 |
TC_SECC_VTB_SessionStop_011 |
|
|
159 |
TC_SECC_VTB_SessionStop_012 |
|
|
160 |
TC_SECC_VTB_SessionStop_013 |
|
表4.日标检测项目
|
序号 |
日标CHAdeMO测试项目 |
|
1 |
一般检查 |
|
2 |
外观检查 |
|
3 |
标志检查 |
|
4 |
基本构成检查 |
|
5 |
机械开关设备检查 |
|
6 |
防盗措施检查 |
|
7 |
功能试验 |
|
8 |
通信功能试验 |
|
9 |
充电连接装置检查 |
|
10 |
锁止装置试验 |
|
11 |
显示功能试验 |
|
12 |
充电电流响应试验 |
|
13 |
充电电流下降速率试验 |
|
14 |
电流纹波试验 |
|
15 |
电压纹波试验 |
|
16 |
负载突降试验 |
|
17 |
输出电流误差试验 |
|
18 |
输出电压误差试验 |
|
19 |
充电电流控制延时试验 |
|
20 |
充电电流下降速率试验 |
|
21 |
负载突降试验 |
|
22 |
保护导体连续性检查 |
|
23 |
电压测量精度检测 |
|
24 |
电流测量精度检测 |
|
25 |
连接器锁定检测 |
|
26 |
绝缘异常模拟试验 |
|
27 |
电池过电压保护试验 |
|
28 |
控制电路电源完整性试验 |
|
29 |
输入功能试验 |
|
30 |
计量功能试验 |
|
31 |
安全要求试验 |
上一页
下一页
上一页
下一页
相关产品
暂无数据
电话：18926763142 / 0755-86660346
传真：0755-26470506
地址：广东省深圳市宝安区汇智研发中心A座6楼
阿里巴巴商铺：https://szxlele.1688.com/
功率源表新网站：http://gly.xl-ele.com
星龙检测公司网站：http://www.xljc-ltd.com
扫码进入小程序
扫码关注公众号
扫码关注搜狐号
扫码关注百家号
扫码关注抖音号
